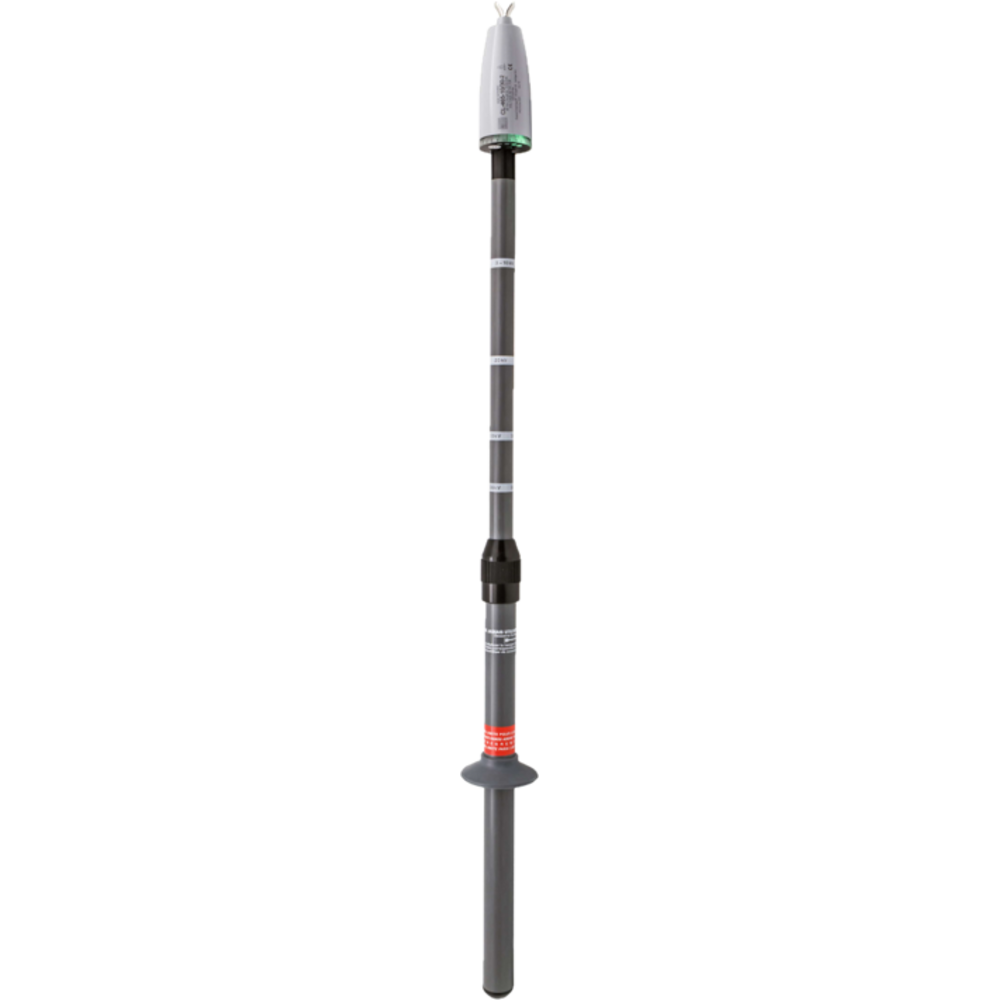

Voltage detector for MV substation
Application:
- Luminous Absence of Voltage Checker for MV substation with insulating pole.
- Maximum operating voltage: 36 kV according to models.
Features:
- Built-in function control device.
- Robust molded thermoplastic housing providing excellent impact protection.
- Interchangeable V-shaped contact electrodes.
- 360° visual indication by means of a high visibility red LED.
- Lithium battery with 8 years autonomy in standard use.
Composition:
- CL-465-10/30-M and CL-465-10/36-M: Supplied in vinyl bag with wall brackets CI-06-D.
- CL-465-10/30-2: Supplied in canvas case, waterproofed with strap.
| Reference | Fitting | Voltage range | Operating Voltage AC | Weight (kg) | Length (mm) | |
|---|---|---|---|---|---|---|
 |
CL-465-10/36-C | C | 10 - 36 kV | 10 - 36 kV | 0,4 | 270 |
 |
CL-465-10/30-M | 10 - 30 kV | 10 - 30 kV | 0,9 | 1 250 | |
|
CL-465-10/36-M | 10 - 36 kV | 10 - 36 kV | 0,9 | 1 250 | |
 |
CL-465-10/30-2 | 10 - 30 kV | 10 - 30 kV | 0,9 | 1 118 |
