Mobile Phone Thermal Camera

IX2-AIR-Pro-Wireless-Thermal-Camera-for-Smart-Devices-4

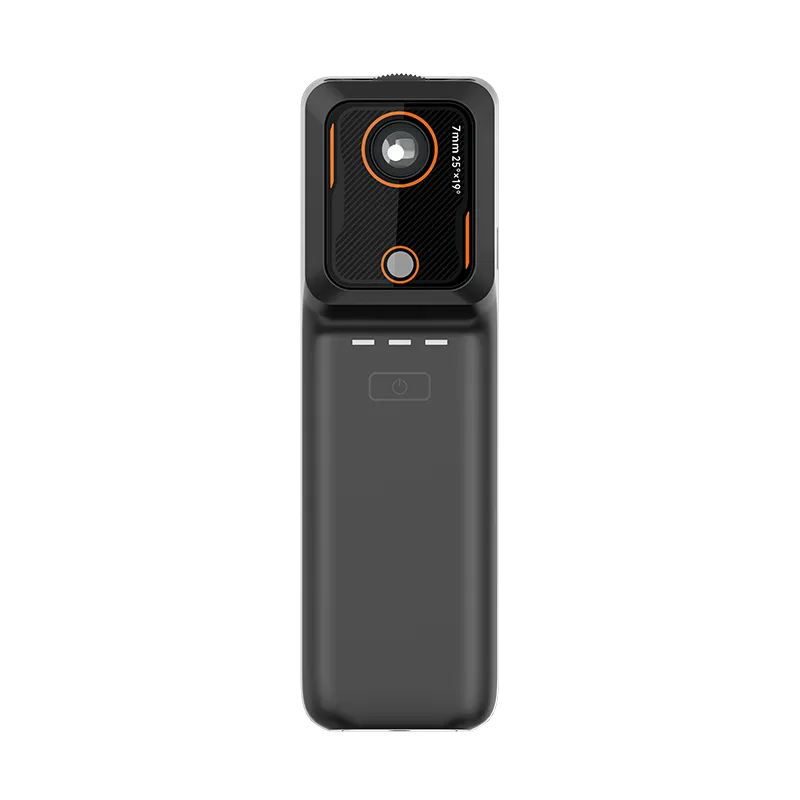

IX2 AIR Pro Wireless Thermal Camera for Android or Iphone

IX2 AIR Pro new wireless thermal camera for smartphones is compatible with Android and iOS devices, enabling wireless image transmission up to 30m away. With the 256×192 thermal imaging resolution, it can achieve four times the AI real-time super-resolution up to 512×384. With the 7mm adjustable focus lens, it is capable of close-range HD imaging. AI Raya voice interaction enables quick parameter setting. It is suitable for industrial scenarios such as circuit board maintenance, electrical maintenance, equipment inspection and HVAC leak detection to efficiently locate thermal hazards.

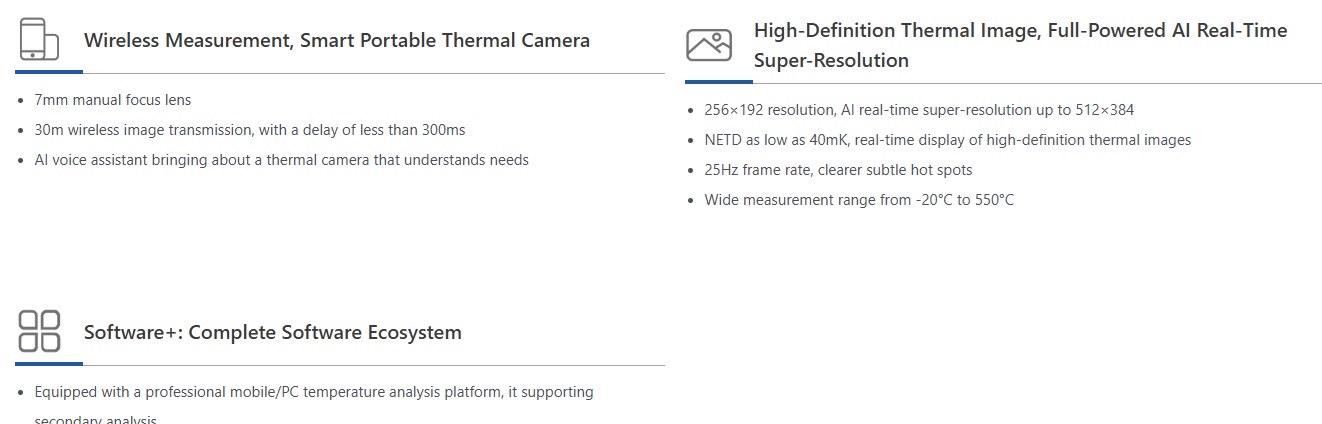

Specification IX2

Specification

Thermal Imaging
Detector Type Uncooled infrared detector
Infrared Resolution 256×192
Pixel Size 12μm
Super Resolution 512×384
Spectral Band 7.5-14μm
NETD 40mK
Frame Rate 25 Hz
Lens Focal Length 7mm
FOV 25°×19°
IFOV 1.71mrad
Focusing Mode Manual focusing
Minimum Imaging Distance 0.1m
Measurement Range -20°C ~ +550°C
Measurement Accuracy ±2ºC or ±2% of readings, whichever is greater
Imaging Display
Visible Light Camera 2 megapixels
Digital Zoom 1×, 2×, 4×
Palettes 10
Image Mode Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch Automatic/Manual
Image Storage
Storage Medium lmages stored in the APP by default and downloadable to a local album
Measurement and Analysis
Analysis Functions on the Device Up to 3 movable points, lines, and frames; up to 3 preset templates
Analysis Report PDF format, supporting APP-side report generation
Supporting Software PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Video Functions
Radiation Infrared Video Recording Standard MP4
Radiation Infrared Video Stream Transmission TYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streams
Video Resolution 512×384
System Functions
Communication Protocol Wi-Fi, USB, Bluetooth
Voice Control Voice assistant, quick command recognition
Others
Battery Built-in 1050mAh lithium-ion battery
Charging Mode USB Type-C direct charging
Battery Life About 2h
External Interface USB Type-C
Tripod Socket UNC 1/4-20 interface for tripod
Operating Temperature -10°C~+50°C
Operating Humidity 10%~90% (non-condensing)
Storage Temperature -20°C~+60°C
Ingress Protection Rating IP54
Shock and Vibration Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions About 142g,136.2x41x29.3mm
Certificates CE/FCC/ROHS/SRRC/DGM/CMA
Package Contents Thermal camera, Type-C cable, quickstart guide n certificate, certificate of conformity, portable bag

Application Scenarios



Electrical Maintenance
Electrical Maintenance


Equipment Inspection
Equipment Inspection


HVAc Leak Detection
HVAc Leak Detection


Circuit Board Maintenance
Circuit Board Maintenance
